Train Variational Quantum Circuits by using evovaq and Qiskit
1) Training a Variational Quantum Classifier through a Memetic Algorithm
Importing modules
[1]:
from sklearn.datasets import load_iris
from sklearn.model_selection import train_test_split
from sklearn.metrics import log_loss
from sklearn.preprocessing import MinMaxScaler
from sklearn.metrics import accuracy_score
from qiskit.circuit.library import ZZFeatureMap, RealAmplitudes
from qiskit import Aer, execute
from evovaq.problem import Problem
from evovaq.GeneticAlgorithm import GA
from evovaq.HillClimbing import HC
from evovaq.MemeticAlgorithm import MA
import evovaq.tools.operators as op
import numpy as np
Uploading the classical data
[2]:
iris = load_iris()
# For the sake of simplicity, we consider all the four features but only two classes
iris_data = iris.data[:100, :4]
iris_target = iris.target[:100] # 0 or 1
# Split into train and test subsets
train_data, test_data, train_labels, test_labels = train_test_split(iris_data, iris_target, test_size=0.2,
random_state=42)
# Pre-process data
scaler = MinMaxScaler()
scaler.fit(train_data)
train_data = scaler.transform(train_data)
test_data = scaler.transform(test_data)
Building the Variational Quantum Classifier
[3]:
# Encode classical data in a quantum system through a FeatureMap
dim = train_data.shape[1]
feature_map = ZZFeatureMap(dim, reps=1, entanglement='linear')
# Define an Ansatz to be trained
ansatz = RealAmplitudes(num_qubits=dim, reps=1, entanglement='circular')
# Put together our quantum classifier
circuit = feature_map.compose(ansatz)
# Measure all the qubits to retrieve label information
circuit.measure_all()
[4]:
def get_label_prediction(circuit, features, params):
# Bind the parameters to our quantum classifier
bound_circuit = circuit.bind_parameters(np.concatenate((features,params)))
backend = Aer.get_backend('qasm_simulator')
counts = execute(bound_circuit, backend).result().get_counts()
# Read the label by considering the parity mapping of the final quantum state
parity_1 = 0
for state, count in counts.items():
if state.count('1') % 2 == 1:
parity_1 += count
return parity_1 / sum(counts.values())
Defining the cost function to be minimized
[5]:
def cost_function(params):
predictions = [get_label_prediction(circuit, features, params) for features in train_data]
return log_loss(train_labels, predictions)
Setting up the problem
[6]:
problem = Problem(ansatz.num_parameters, ansatz.parameter_bounds, cost_function)
Defining a Memetic Algorithm
[7]:
# Define the global search method
global_search = GA(selection=op.sel_tournament, crossover=op.cx_uniform, mutation=op.mut_gaussian, sigma=0.2, mut_indpb=0.15,
cxpb=0.9, tournsize=5)
# Create a neighbour of a possibile solution
def get_neighbour(problem, current_solution):
neighbour = current_solution.copy()
index = np.random.randint(0, len(current_solution))
_min, _max = problem.param_bounds[0]
neighbour[index] = np.random.uniform(_min, _max)
return neighbour
# Define the local search method
local_search = HC(generate_neighbour=get_neighbour)
# Compose the global and local search method for a Memetic Algorithm
optimizer = MA(global_search=global_search.evolve_population, sel_for_refinement=op.sel_best, local_search=local_search.stochastic_var, frequency=0.1, intensity=10)
Training our VQC
[8]:
res = optimizer.optimize(problem, 10, max_gen=10, verbose=True, seed=42)
res
Generations: 0%| | 0/10 [00:00<?, ?gen/s]
********** Execution #1 **********
gen nfev min max mean std
----- ------ -------- ------- -------- --------
0 10 0.574194 1.01087 0.777387 0.118212
Generations: 10%|███ | 1/10 [00:07<01:09, 7.68s/gen]
1 20 0.549579 0.824715 0.724881 0.0867576
Generations: 20%|██████ | 2/10 [00:14<00:58, 7.29s/gen]
2 18 0.519661 0.737288 0.624565 0.076709
Generations: 30%|█████████ | 3/10 [00:22<00:52, 7.46s/gen]
3 20 0.512227 0.603781 0.554474 0.0314989
Generations: 40%|████████████ | 4/10 [00:29<00:44, 7.39s/gen]
4 19 0.506354 0.553874 0.527675 0.0165829
Generations: 50%|███████████████ | 5/10 [00:36<00:36, 7.36s/gen]
5 19 0.487778 0.514964 0.507114 0.00765964
Generations: 60%|██████████████████ | 6/10 [00:44<00:29, 7.34s/gen]
6 19 0.487778 0.510338 0.499565 0.00927926
Generations: 70%|█████████████████████ | 7/10 [00:51<00:22, 7.45s/gen]
7 20 0.485524 0.500729 0.491166 0.00411343
Generations: 80%|████████████████████████ | 8/10 [00:58<00:14, 7.27s/gen]
8 18 0.485524 0.506184 0.493225 0.00625882
Generations: 90%|███████████████████████████ | 9/10 [01:06<00:07, 7.28s/gen]
9 19 0.485524 0.494877 0.490388 0.00262625
Generations: 100%|█████████████████████████████| 10/10 [01:13<00:00, 7.28s/gen]
10 19 0.4826 0.507815 0.491194 0.0067016
[8]:
fun: 0.48260042185591684
gen: 10
log: {'gen': [0, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10], 'nfev': [10, 20, 18, 20, 19, 19, 19, 20, 18, 19, 19], 'min': [0.5741943431806411, 0.5495792409760082, 0.5196605664809661, 0.5122270310580073, 0.5063544128367315, 0.48777758944625205, 0.48777758944625205, 0.4855235783395476, 0.4855235783395476, 0.4855235783395476, 0.48260042185591684], 'max': [1.0108700876409014, 0.8247149305827991, 0.7372875746767409, 0.6037810463616139, 0.5538735167983232, 0.5149636544597807, 0.5103379175913295, 0.5007291786843474, 0.5061838813178279, 0.49487692318985294, 0.5078148595811571], 'mean': [0.7773865786237139, 0.7248805833709737, 0.624564804037709, 0.5544738494343432, 0.5276751585322951, 0.5071143411368311, 0.49956486395235433, 0.491165859240668, 0.4932252838704291, 0.49038829387334315, 0.49119421090738113], 'std': [0.11821196539990832, 0.08675763260140516, 0.07670898880389071, 0.03149892902008803, 0.016582930547904655, 0.0076596415234313035, 0.00927925771628771, 0.004113433790050419, 0.006258821291836501, 0.002626253612978286, 0.006701596001080847]}
nfev: 201
x: array([ 0.95180689, -1.57259719, -1.70411141, -0.58746966, -2.9748859 ,
3.05920085, 1.45586664, 0.85704908])
Testing the optimal solution found
[9]:
test_predictions = [1 if get_label_prediction(circuit, features, res.x) > 0.5 else 0 for features in test_data]
test_accuracy = accuracy_score(test_labels, test_predictions)
print("Accuracy on the test subset:", test_accuracy)
Accuracy on the test subset: 0.9
2) QAOA trained by a Particle Swarm Optimization algorithm to solve MaxCut problem
Importing modules
[10]:
import networkx as nx
import numpy as np
from qiskit import execute, Aer
from qiskit.visualization import plot_histogram
from qiskit_optimization.applications import Maxcut
from qiskit.circuit.library import QAOAAnsatz
from evovaq.problem import Problem
from evovaq.ParticleSwarmOptimization import PSO
Defining the graph
[11]:
num_nodes = 5
edges = [(0, 1), (0, 2), (0, 3), (0, 4)]
G = nx.Graph()
G.add_nodes_from(range(num_nodes))
G.add_edges_from(edges)
nx.draw(G, with_labels=True)
Mapping the MaxCut problem in a QAOA circuit ansatz
1 - Trasforming the MaxCut instance in a quadratic problem
[12]:
maxcut_prob = Maxcut(G)
maxcut_qp = maxcut_prob.to_quadratic_program()
print(maxcut_qp.prettyprint())
Problem name: Max-cut
Maximize
-2*x_0*x_1 - 2*x_0*x_2 - 2*x_0*x_3 - 2*x_0*x_4 + 4*x_0 + x_1 + x_2 + x_3 + x_4
Subject to
No constraints
Binary variables (5)
x_0 x_1 x_2 x_3 x_4
2 - Defining the Hamiltonian by mapping the QUBO problem in an Ising Model
[13]:
# MaxCut problem to Hamiltonian operator
hamiltonian, offset = maxcut_qp.to_ising()
3 - Building the QAOA circuit based on the MaxCut instance
[14]:
# QAOA ansatz circuit
qaoa_circuit = QAOAAnsatz(hamiltonian, reps=2)
qaoa_circuit.measure_all()

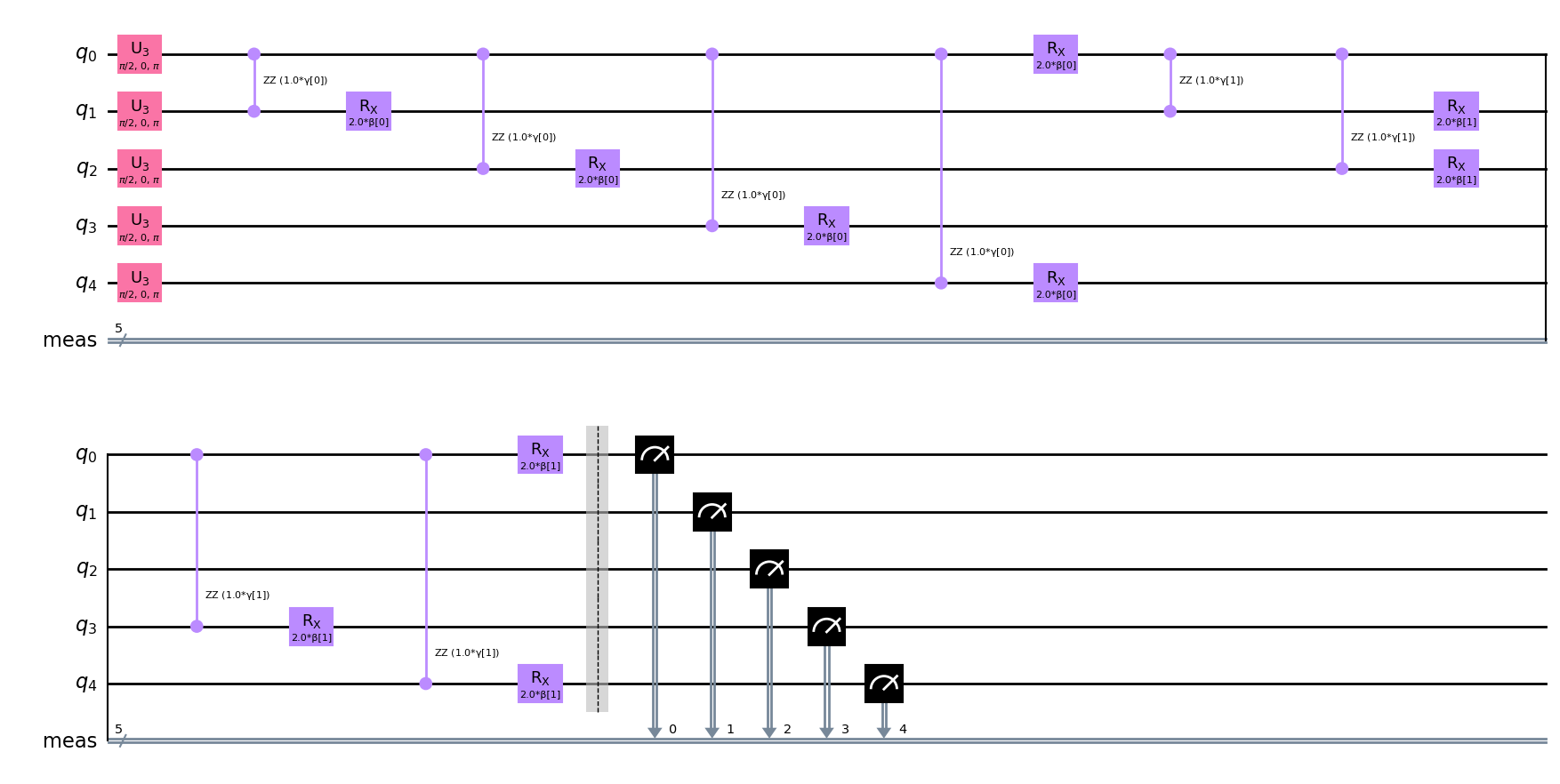

qaoa_circuit.decompose(reps=3).draw('mpl')
[14]:
Defining the cost function to be minimized
[15]:
def cost_function(params):
backend = Aer.get_backend('qasm_simulator')
# Bind the parameters to the QAOA circuit
bound_qaoa_circuit = qaoa_circuit.bind_parameters(params)
counts = execute(bound_qaoa_circuit, backend, shots=512).result().get_counts()
cost_value = 0
# Compute the cost value by using the maxcut objective function
for bitstring, count in counts.items():
cost_value -= count * maxcut_qp.objective.evaluate([int(bit) for bit in bitstring[::-1]])
return cost_value / sum(counts.values())
Setting up the problem
[16]:
qaoa_problem = Problem(qaoa_circuit.num_parameters, (0, 2 * np.pi), cost_function)
Defining the Particle Swarm Optimization algorithm
[17]:
optimizer = PSO(vmin=-0.1, vmax=0.1)
Training the QAOA circuit
[18]:
res = optimizer.optimize(qaoa_problem, 10, max_nfev=100, seed=42)
res
Fitness Evaluations: 0%| | 0/100 [00:00<?, ?nfev/s]
Fitness Evaluations: 20%|███▌ | 20/100 [00:00<00:00, 111.69nfev/s]
********** Execution #1 **********
gen nfev min max mean std
----- ------ -------- -------- ------- --------
0 10 -3.59961 -1.21289 -2.0998 0.795261
1 10 -3.69336 -1.16016 -2.06133 0.827515
Fitness Evaluations: 40%|███████▌ | 40/100 [00:00<00:00, 70.74nfev/s]
2 10 -3.52539 -1.10156 -2.01016 0.748684
3 10 -3.37695 -1.16602 -1.99609 0.70882
4 10 -3.39062 -0.621094 -1.93848 0.725515
Fitness Evaluations: 50%|█████████▌ | 50/100 [00:00<00:00, 66.07nfev/s]
Fitness Evaluations: 60%|███████████▍ | 60/100 [00:00<00:00, 63.26nfev/s]
Fitness Evaluations: 70%|█████████████▎ | 70/100 [00:01<00:00, 61.28nfev/s]
5 10 -3.56641 -0.810547 -2.06152 0.680007
6 10 -3.74805 -1.32617 -2.1293 0.685094
7 10 -3.72266 -1.22656 -2.19453 0.671043
Fitness Evaluations: 80%|███████████████▏ | 80/100 [00:01<00:00, 59.48nfev/s]
Fitness Evaluations: 90%|█████████████████ | 90/100 [00:01<00:00, 58.61nfev/s]
Fitness Evaluations: 100%|██████████████████| 100/100 [00:01<00:00, 62.75nfev/s]
8 10 -3.75391 -0.927734 -2.15273 0.712836
9 10 -3.69922 -0.908203 -2.10605 0.733891
[18]:
fun: -3.75390625
gen: 10
log: {'gen': [0, 1, 2, 3, 4, 5, 6, 7, 8, 9], 'nfev': [10, 10, 10, 10, 10, 10, 10, 10, 10, 10], 'min': [-3.599609375, -3.693359375, -3.525390625, -3.376953125, -3.390625, -3.56640625, -3.748046875, -3.72265625, -3.75390625, -3.69921875], 'max': [-1.212890625, -1.16015625, -1.1015625, -1.166015625, -0.62109375, -0.810546875, -1.326171875, -1.2265625, -0.927734375, -0.908203125], 'mean': [-2.0998046875, -2.061328125, -2.01015625, -1.99609375, -1.9384765625, -2.0615234375, -2.129296875, -2.19453125, -2.152734375, -2.1060546875], 'std': [0.7952608162924764, 0.827514976527285, 0.748683944616005, 0.7088197122833735, 0.7255149590956633, 0.6800069124207058, 0.6850942237816521, 0.6710433852244695, 0.712836470545829, 0.7338907406430878]}
nfev: 100
x: array([2.78906277, 4.94085891, 1.31774472, 3.20100144])
Testing the optimal angles found
[19]:
backend = Aer.get_backend('qasm_simulator')
trained_qaoa_circuit = qaoa_circuit.bind_parameters(res.x)
counts = execute(trained_qaoa_circuit, backend, shots=512).result().get_counts()

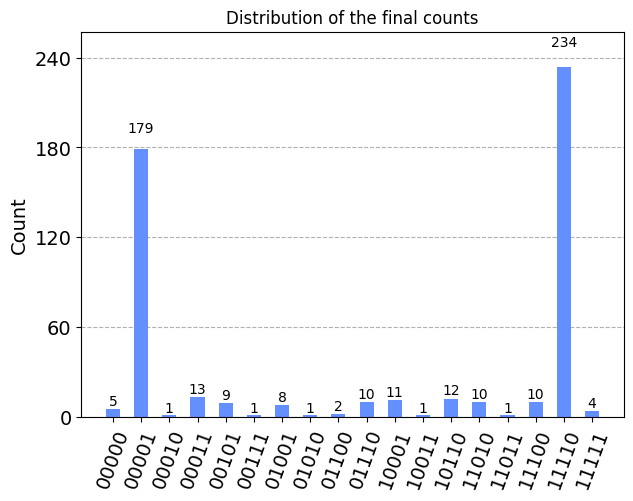

plot_histogram(counts, title='Distribution of the final counts')
[19]:
[20]:
bitstring = maxcut_prob.sample_most_likely(counts)
print('Optimal solution: ', bitstring)
Optimal solution: [0 1 1 1 1]
[21]:
maxcut_prob.draw(bitstring)
